Steel Sand And Dust Test Chamber IP68 Environmental Test Device

Brand Name : LIB

Model Number : DI-800

Certification : IEC60529,Rohs,CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability : 360 sets / quarter

Delivery Time : 3-14days

Packaging Details : Wooden cases standard export package

Name : IP Environmental IP68 Test Device

Temperature range : Ambient to +50℃

Normal wire diameter : 50um

Normal width of a gap between wire : 75um

Standard : IEC60529,ISO20653

Controller : programmable color display touch screen controller

Contact Now

Description

IP68 Test Device,IP68 test standard hardware equipment should be dust-free, and the amount of water immersed in the shell after continuous diving will not reach a harmful level. IP68 tester mainly to test the protection of the enclosure, lamps,etc.

Parameter

Steel Sand And Dust Test Chamber IP68 Environmental Test Device

IP6X test device:IP6X means completely prevent the intrusion of foreign objects and dust;

Model	DI-800
Internal Dimension (mm)	80010001000
Overall Dimension (mm)	104014501960
Interior Volume (L)	800
Temperature Range	Ambient ~ +50℃
Humidity Range	< 30% RH
Normal Wire Diameter	50um
Nominal Width of a Gap Between wires	75um
Specimen Power Outlet	Dust-proof socket 16A
Vacuum System	Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration	Sample shelf, dust wiper, talcum powder(5kgs)

IPX8 test device:IPX8 means that the electrical appliance sinks under the specified water pressure indefinitely, which ensures that it will not cause damage due to immersion in water.

Model	R78-1000
Useful volume	Diameter 1000mm, Height 1500mm.
Material	Material is steel plate, wall thickness 2cm
Water depth	Water depth pressure range 1~100m, adjustable
Water supply	Automatic water supply
Controller	Programmable color touch screen type controller, display temperature, specimen surface temperature, water depth, run time.
Open/close	Open/close lid by pneumatic lift, with safety lock.
Standard	Comply with IEC60529 IPX7 IPX8 water tests

Precautions

1. The test piece must not have any gaps

2. The measuring piece itself cannot be waterproofed

3. The seal of the test piece must be complete and strong:

4. The key and hinge of the piece are well sealed:

5. The joint of the test piece is well sealed.

Name	IPX7 immersion test equipment
Model	R78-1000
Useful volume	Diameter 1000mm, Height 1500mm.
Material	Material is steel plate, wall thickness 2cm
Water depth	Water depth pressure range 1~100m, adjustable
Water supply	Automatic water supply
Controller	Programmable color touch screen type controller
Open/close	Open/close lid by pneumatic lift, with safety lock.
Standard	Comply with IEC60529 IPX7 IPX8 water tests

Product Tags:

IP68 Environmental Test Device

Steel Dust Test Chamber

Sand Dust Test Device

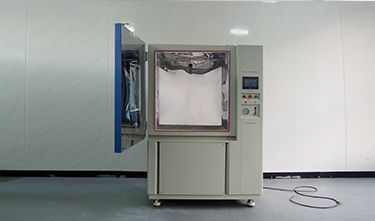

Steel Sand And Dust Test Chamber IP68 Environmental Test Device Images
